产品说明 PRODUCT DESCRIPTION

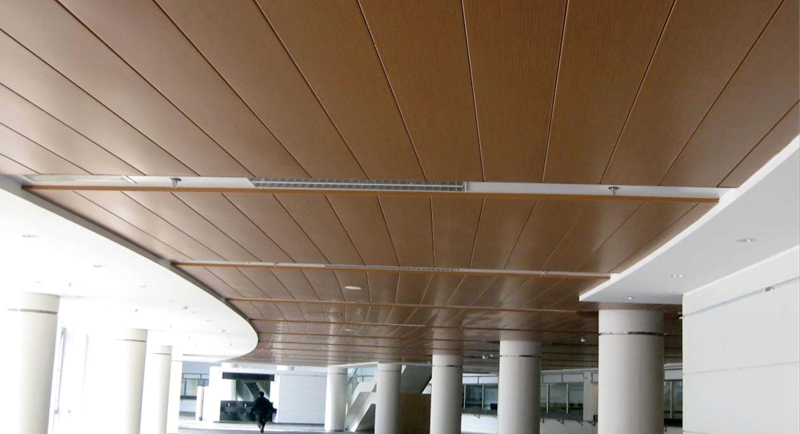

产品说明：直角条型金属板系列都是标准型天花板，多种宽度，而且长度可以定尺加工，板面可冲孔，因其线条流畅被用在车站、地 铁、机场等大型项目上较多。
●Right angle plank system is a standard panel.
●It can be easily adapted to suit large projects such as station, metro and airport, etc. and unique aesthetical requirements by various panel sizes.

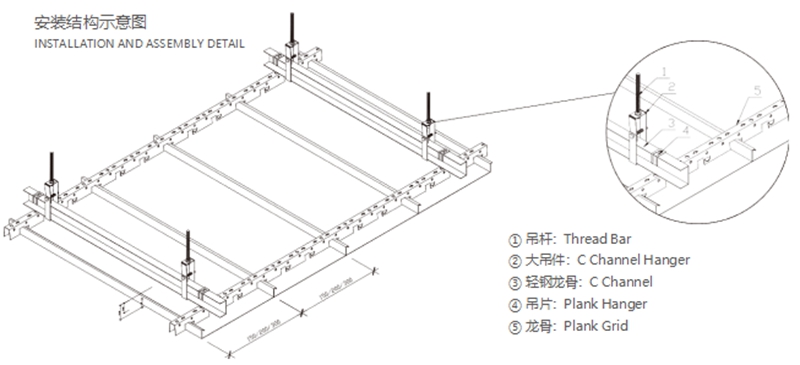

直角密拼条板辅件表 PLANK SUSPENSION SYSTEM
序号 NO. | 产品名称 Product name | 型号 Specification | 材质 Material | 定尺长度 Length | 图形 Picture |
1 | 吊 杆 Thread Bar | M8 | 镀锌钢 Galvanized Steel | 3m |
|
2 | 大 吊 件 C Channel Hange | C50/60 | 镀锌钢 Galvanized Steel |
|
|
3 | 轻钢龙骨 C Channel | C50/60 | 镀锌钢 Galvanized Steel | 4m |
|
4 | 吊 片 Plank Hanger | TG50/60 | 镀锌钢 Galvanized Steel |
|
|
5 | 龙 骨 TG Plank Grid | TG100/150/300 | 烤漆钢 Galvanized Steel | 3m |
|
产品参数表 PRODUCT DATA
名称 Product name | 说明 Product data | 板型（Picture） |
材料材质 Materials | 铝基Aluminum base：0.7-0.8mm | W |
规格尺寸 Dimension | 组合模数（W)：150/200/300*L |
表面处理 Surface finish | 静电粉末喷涂、预辊涂、氟碳喷涂 Fluorine carbur spray Pre-coating |
颜色 Color | 白色 / 客户定制 White Wood grain Client customized |
冲孔 Perforation | 标孔 / 客户定制 Standard Perforation Client customized |
吸音材料 Acoustic material | Soundex / 客户定制 Soundex Client customized |
防火性能 Fire performance | A1 grade |
声学性能 Acoustical performance | NRC=0.65-0.8 |
