产品说明 PRODUCT DESCRIPTION

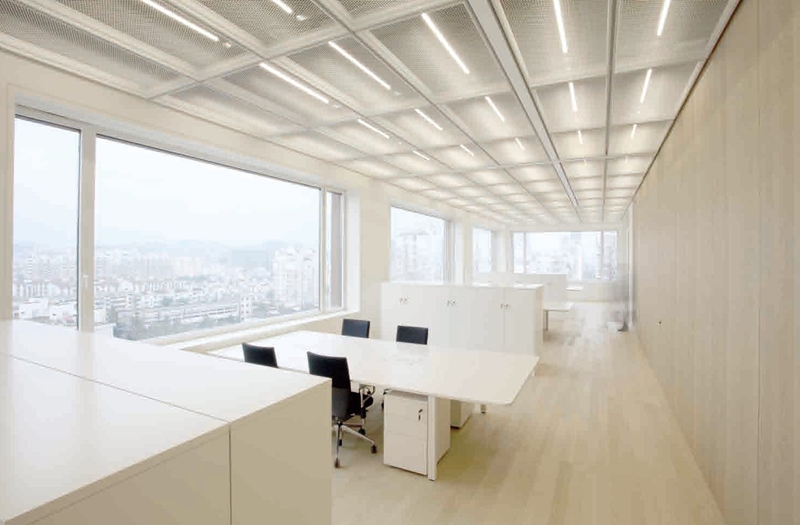

网包框扩充网系统具有开放、通透的效果，是大型建筑吊顶的理想选择之一。系统可选用明架型材、框包网、网包框多种悬挂方式， 配合金属板面经拉伸构成的网眼天花形成通透式的效果，给人一种明暗交错的视觉。
Interior frame expanded wire system has the effect of opening and permeable, it is one of the ideal solutions of the large building ceilings. Lay In Extrusion, External Frame and Interior Frame are available, form the permeable effect by expanded and provide the vision of light and shade staggered.

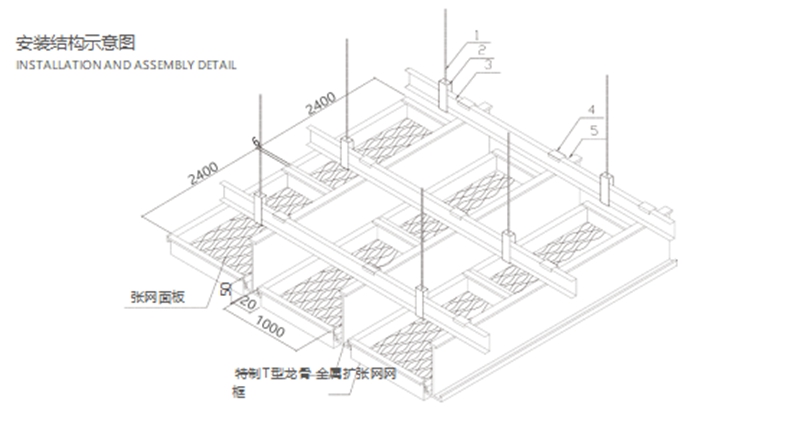

网包框系列系列选用辅件表
ALUMINUM (STEEL) INTERIOR FRAME WIRE SUSPENSION SYSTEM
序号 NO. | 产品名称 Product name | 产品型号 Specification | 材质 Material | 定尺长度 Length | 图形 Picture |
1 | 吊杆 Thread Bar | M8 | 镀锌钢 alvanized Steel | 3m | |
2 | 大 吊 件 C Channel Hanger | C50/60 | 镀锌钢 alvanized Steel |
|
|
3 | 轻钢龙骨 C Channel | C50/60 | 镀锌钢 alvanized Steel | 4m |
|
4 | Z型龙骨吊件 Z Shape Grid Hanger | C50/60 | 镀锌钢 alvanized Steel |
|
|
5 | Z龙骨 Z Shape Grid | Z50 | 镀锌钢 alvanized Steel | 3m |
|
产品参数表 PRODUCT DATA
名称 Product name | 说明 Product data | 板型（Picture） |
材料材质 Materials | 铝基：1.5-3.0mm 钢基：1.0-2.0 Aluminum base: 1.5-3.0 Steel base: 1.0-2.0 |
|
规格尺寸 Dimension | (W)300-1200*(L)≤4000mm*(H)30 |
孔尺寸 Perforation | 标孔 / 客户定制 Standard Perforation Client customized |
表面处理 Surface finish | 静电粉末喷涂、氟碳喷涂 Fluorine carbur spray Pre-coating |
颜色 Color | 白色 / 客户定制 White Wood grain Client customized |
