产品说明 PRODUCT DESCRIPTION

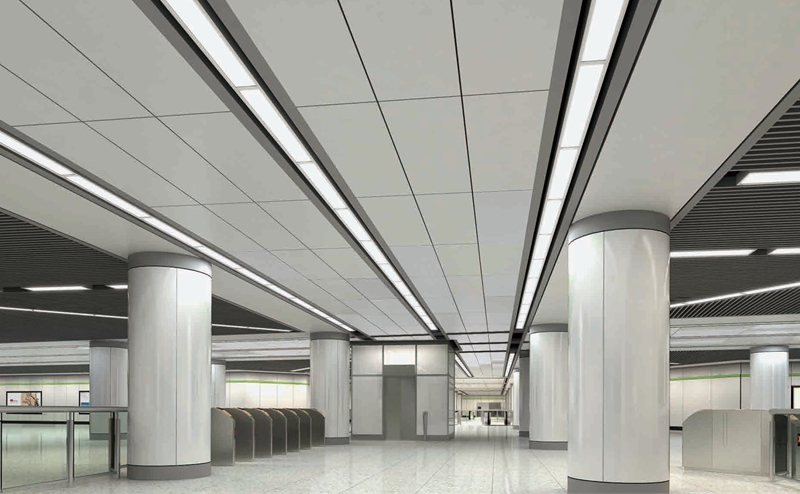

悬挂式系统采用勾挂结构，施工方便，每件可多次重复拆装。有光板、标准孔面板、微孔面板供选择。
●Hook-on grid systems, simple accessibility
●Un-perforated panels, standard perforated panels and micro perforated panels for options.
选用附件表 HOOK-ON SUSPENSION SYSTEM
序号 NO. | 产品名称 Product name | 型号 Specification | 材质 Material | 定尺长度 Length | 图形 Picture |
1 | 吊杆 Thread Bar | M8 | 镀锌钢 Galvanized Steel | 3m |
|
2 | 大吊件 C Channel Hanger | C50/60 | 镀锌钢 Galvanized Steel |
|
|
3 | 轻钢龙骨 C Channel | C50/60 | 镀锌钢 Galvanized Steel | 4m |
|
4 | Z型龙骨吊件 Z Shape Hanger | C50/60 | 镀锌钢 Galvanized Steel |
|
|
5 | Z龙骨 Z Shape Grid | Z50 | 镀锌钢 Galvanized Steel | 3m |
|
产品参数表 PRODUCT DATA
名称 Product name | 说明 Product data | 板型（Picture） |
材料材质 | 钢基:0.6-0.7, 铝基：1.0-3.0 | 直角双勾板 |
Materials | Steel base: 0.6-0. 7mm Aluminum base: 1.0-1.2mm |
规格尺寸 Dimension | 组合模数:(宽)1500*长 其它定制 Split mould (W)1500*L, Other customized |
表面处理 Surface finish | 静电粉末喷涂、预辊涂、氟碳喷涂 Fluorine carbur spray Pre-coating |
颜色 Color | 白色 / 客户定制 White Wood grain Client customized |
|
冲孔 Perforation | 标孔 / 客户定制 Standard Perforation Client customized | 直角勾搭板 |
吸音材料 Acoustic material | Soundex / 客户定制 Soundex Client customized |
|
防火性能 Fire performance | A1 grade | 直角双搭板 |
声学性能 Acoustical performance | NRC=0.65-0.8 |
