产品说明 PRODUCT DESCRIPTION
此系列产品安装采用卡式，折边卡在暗架龙骨里，使结构更加牢固，板缝更加笔直。若折边采用倒角，使吊顶轮廓线更加清晰，整体 显得美观大方。有光板面板、标准孔面板、微孔面板供选择。
1. Concealed suspended system for monolithic effect.
2. Make the structure more fastness and the panel's gap more straight
3. The edge adopted with chamfer, the ceiling profile more clear.
4. Un-perforated panels, standard perforated panels and micro perforated panels for options.

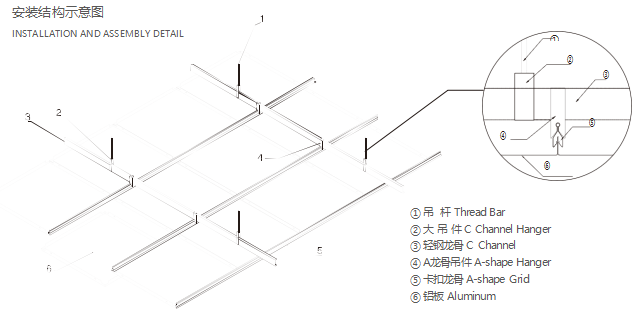

暗架系统辅材表 CLIP IN SUSPENSION SYSTEM
序号 NO. | 产品名称 Product name | 型号 Specification | 材质 Material | 定尺长度 Length | 图形 Picture |
1 | 吊杆 Thread Bar | M8 | 镀锌钢 Galvanized Steel | 3m |
|
2 | 大吊件 Thread Bar | C50/C60 | 镀锌钢 Galvanized Steel |
|
|
3 | 轻钢龙骨 C Channel | C50/C60 | 镀锌钢 Galvanized Steel | 4m |
|
4 | A龙骨吊件 A-shape Hanger | C50/C60 | 镀锌钢 Galvanized Steel |
|
|
5 | A型龙骨 A-shape Grid | 37 | 镀锌钢 Galvanized Steel | 3m |
|
产品参数表 PRODUCT DATA
名称 Product name | 说明 Product data | 板型（Picture） |
材料材质 | 钢基:0.6-0.7, 铝基：1.0-1.2 | 直角暗架板 |
Materials | Steel base: 0.6-0. 7mm Aluminum base: 1.0-1.2mm |
规格尺寸 Dimension | 组合模数:(W)300/400/600*(L)300/400/600/1200mm Split mould 300/400/600*(L)300/400/600/1200mm |
表面处理 Surface finish | 静电粉末喷涂、预辊涂、氟碳喷涂 Fluorine carbur spray Pre-coating |
sharp edge |
颜色 Color | 白色 / 客户定制 White Wood grain Client customized |
|
冲孔 Perforation | 标孔 / 客户定制 Standard Perforation Client customized |
|
吸音材料 Acoustic material | Soundex / 客户定制 Soundex Client customized | 斜角暗架板 |
Beveled edge |
防火性能 Fire performance | A1 grade |
声学性能 Acoustical performance | NRC=0.65-0.8 |
